Recommended Use

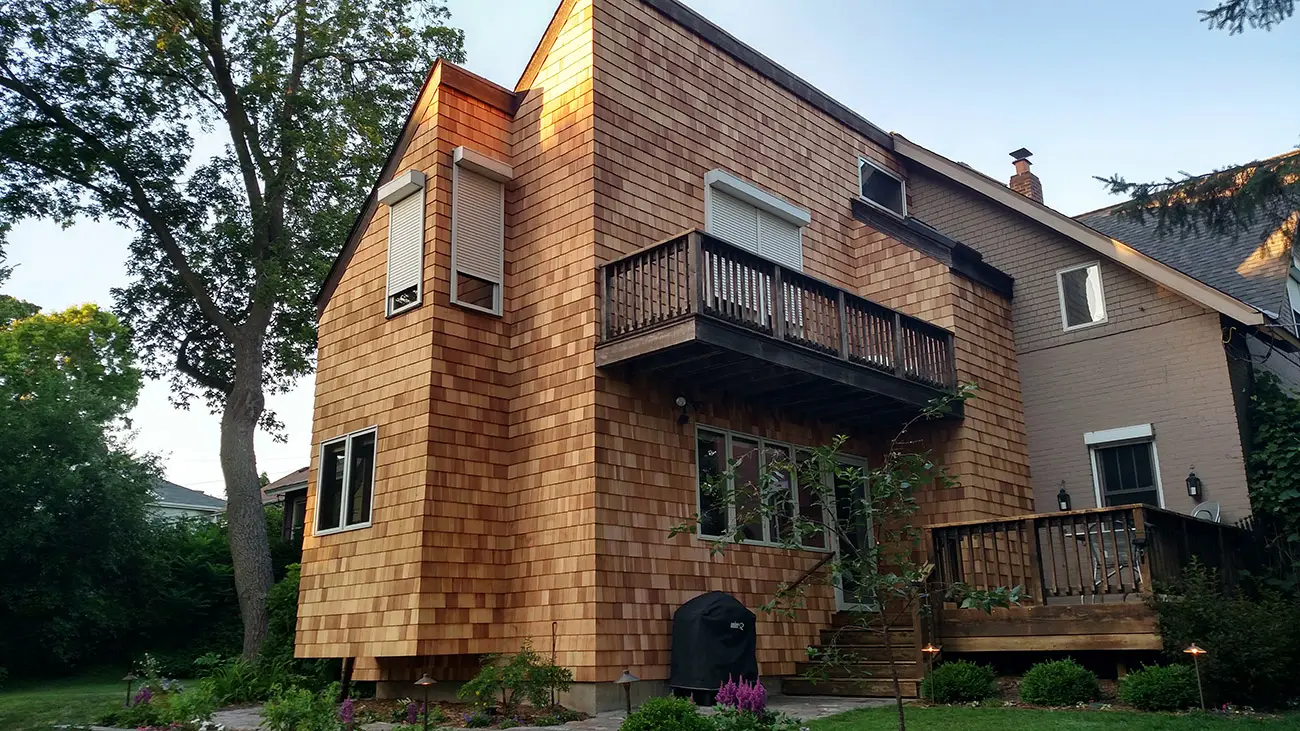

For exterior and interior walls where a good quality product is desired.

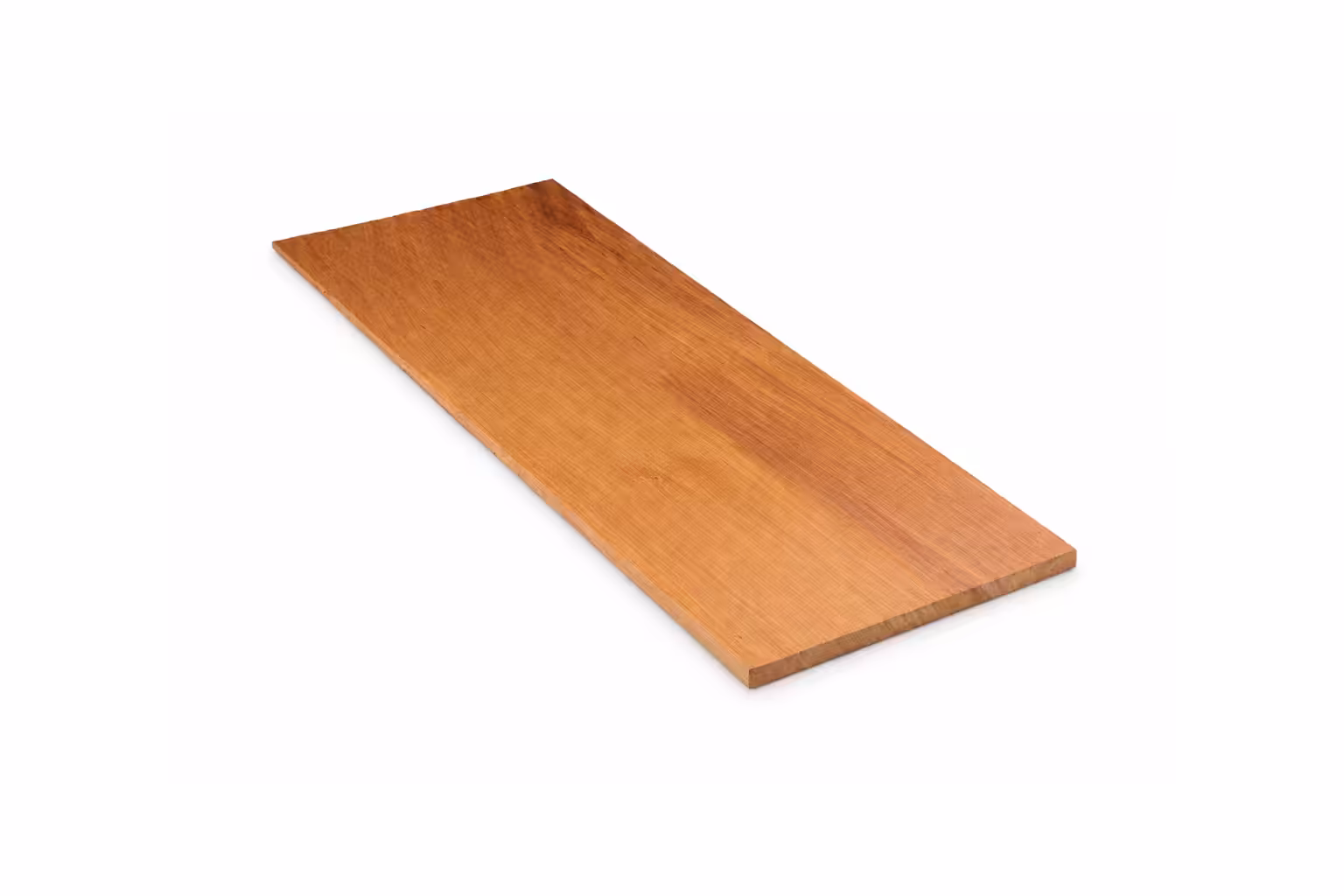

Shingle Dimensions
- nominal thickness – 0.50″ (12.7mm)
- nominal length – 24″ (610mm)
- random width from 4″ to 14″ (100 to 355mm)
Shipping informaion (approximate)
- carton weight – 65 lbs (30 kg)
- carton size – 20″ x 12″ x 18″ (50x30x45cm) WxLxH
- pallet size – 40″ x 53″ x 84″ (100x137x213cm) WxLxH
- pallet weight – 2,000 lbs (900 kg) (30 cartons)
- pallet cubics – 110 cu.ft. (3.1 m3)
- number of cartons per pallet – max. 30
- 20ft container capacity – 216 cartons
- 40ft container capacity – 560 cartons
- Full Truck – North America – 675 cartons
Carton Contents
- approx. 170 shingles
- 56 rows (28/28 pack)
- min. 635 lineal inches, (16.12 m) measured edge to edge
Coverage
- 5″ exposure = 30 sq/ft per/box
- 6″ exposure = 37 sq/ft per/box
- 7″ exposure = 44 sq/ft per/box
- 8″ exposure = 50 sq/ft per/box (Maximum Single Course exposure)
- 9″ exposure = 56 sq/ft per/box (Double Course required)
- 10″ exposure = 62 sq/ft per/box (Double Course required)
Please order an additional 5%-10% to provide for waste, starter courses, and cuts.
Note: Prices are subject to change without notice.
